Tested in multiple directions Strengthening expert  geocell for road  slope


(1)Product Description:


The geocell is a kind of 3d mesh cell structure formed by high strength welding of reinforced HDPE sheet material.
Generally by ultrasonic needle welding.Due to engineering needs, some holes in the diaphragm.

The geocell is a mesh cell structure formed by high strength HDPE or PP copolymer broadband, after strong welding or riveting
It retractable, transport can be folded up, when the use of the expansion and filling of soil and stone or concrete, with a strong lateral constraints and stiffness of the structure

It can be used as a cushion to increase the bearing capacity of soft foundation, or laid on the slope to form a slope protection structure, but also can be used to build retaining structure.

Plastic Gravel Grid Gravel Driveway Black HDPE Grid GeocellPlastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell



(2)Product Function:

1.To stable the roadbed of railway.

2.To stable the roadbed of highroad.

3.To bear the load of dike or retaining wall.

4.To the improvement of shallow riverway.

5.To support the pipeline and sewer.

6.For the prevention of landslide by useing geocell as a heavy-duty hybrid force retaining wall

7.To be used as independent wall, wharf and breakwater, etc.

8.For the desert, beaches and the riverbed, the river bank`s regulation.

Plastic Gravel Grid Gravel Driveway Black HDPE Grid GeocellPlastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell


Plastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell


(3)product performance

Our company cooperates with many companies,   Our product test results are fully up to international standards
The table is our test result

We are very strict with materials,  We do a lot of testing on raw materials
Plastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell


Material PropertiesUnit    Test Method
Cell Depthmm75100150200
Polymer Density

g/cm3                                   0.935-0.965ASTM D1505
Enviromental Stress Crack ResistanceHours>400ASTM D5397
Enviromental Stress Crack ResistanceHours6000ASTM D1693
Carbon Black Content%1.5%-2.0%ASTM D1603
Nominal Sheet Thickness
Before Texturing
mm1.27-5%+10%ASTM D5199
Nominal Sheet Thickness
After Texturingg
mm1.52-5%+10%ASTM D5199
Strip Puncture ResistanceN450ASTM D4833
Seam Peel StrengthN1065142021302840EN  ISO13426-18
Seam Efficiency%100GRI-GS13
Nominal Expanded Cell
Size(width×length)
mm320×287.475×508 etc
Nominal Expanded Panel
Size(width×length)
m2.56×8.35  4.5×5.0  6.5×4.5    6.1×2.44

(4)our Certifications
we have obtained ISO9001 certificate SGS certificate and CE certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Plastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell

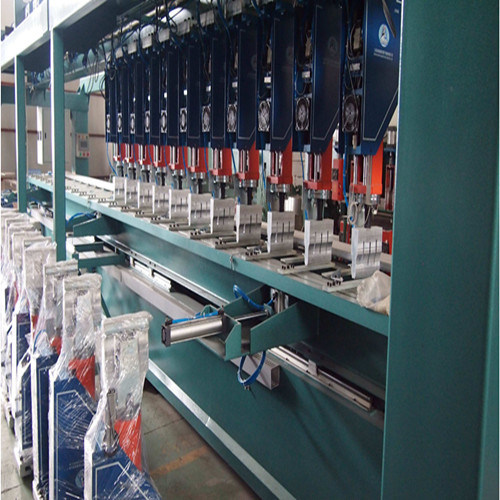

(5)  Our Workshop
In recent years, our company has introduced a series of advanced equipment including 40 production lines for various kinds of geosynthetics products.Such as 28 geogrid production lines,2 geotextile production lines, 2 geomembrane production lines,1 geocell producttion lines, 2 nonwoven fabric roll production lines and 10 other new composite material production lines.




Plastic Gravel Grid Gravel Driveway Black HDPE Grid GeocellPlastic Gravel Grid Gravel Driveway Black HDPE Grid GeocellPlastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell



(6) Packaging & Shipping
We focus on every aspect of packaging,  We seek to ensure the safety of our goods in transit,  We can avoid any trouble in transit
Plastic Gravel Grid Gravel Driveway Black HDPE Grid Geocell
