Geocell ground reinforcement honeycomb system gravel grid driveway gravel stabilizer

Anhui Hechuang  New synthetic Materials Co.,ltd (HCNS)Material    PropertiesPolymer Density (ASTM D 1505)g/cm30.935-0.965Environmental Stress Crack Resistance (ASTM D 1693)hrs6000Carbon Black Content (ASTM D  1603)%min.   1.5%Nominal Sheet Thickness before texturing (ASTM D 5199)mmmin.&nbs

Featured Products

Anhui Hechuang  New synthetic Materials Co.,ltd (HCNS)
Material    Properties
Polymer Density (ASTM D 1505)g/cm30.935-0.965
Environmental Stress Crack Resistance (ASTM D 1693)hrs6000
Carbon Black Content (ASTM D  1603)%min.   1.5%
Nominal Sheet Thickness before texturing (ASTM D 5199)mmmin.   1.27-5%,+10%
Nominal Sheet Thickness after texturing(ASTM D 5199)mmmin.   1.52-5%,+10%
MaterialCompound   of   various  Polyethylenes    and   additives
TexturePolyethylene strip consists of a multiple rhomboidal indentations, over the entire strip on both sides of  the strip.The indentations have a surface density of 22 to 32 per cm2
PerforationsPolyethylene strip is perforated with horizontal rows of maximum 10mm diameter holes. Cell perforations area is less than 12% of  cell surface area.

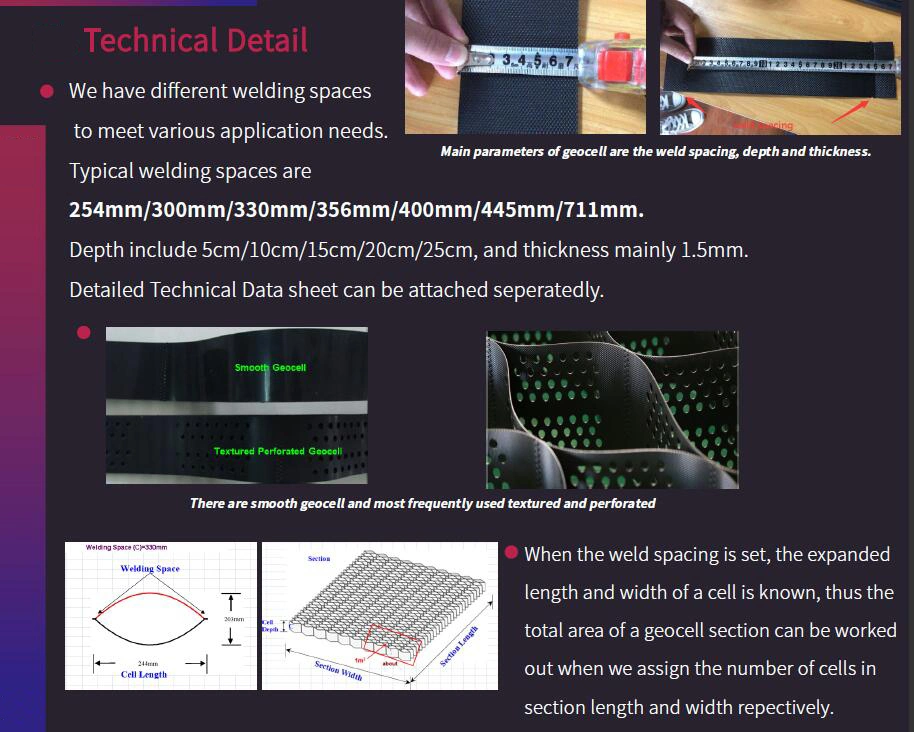

Cell/    Section   Properties
PropertyUnitGM330GM356GM445GM660GM712
Weld   Spacingmm330356445660712
Cell  Depthmm75,   100,   125,   150,   200
Expanded(±  3%) Cell   DimensionsWidthmm244259320488508
Lengthmm210224287436475
Expanded(±  3%) Cell   Areacm225028946010001206
Nominal(±  3%) Expanded   SectionWidthmm2.442.592.562.442.56
Lengthmm6.16.58.3512.6313.72
Nominal(±  3%) Expanded   Section   Aream214.916.821.430.835.1
Seam   PropertiesCell   Depth
mm75100125150200
                     Seam Peel Strength(EN  ISO   13426-1,Method  B:   Peeling  Test) N10651420177521302840

Geocells Ground Reinforcement Cellular System Gravel Grid Driveway Gravel Stabilizer


Geocells Ground Reinforcement Cellular System Gravel Grid Driveway Gravel Stabilizer
Packaging and Shipping

Geocells Ground Reinforcement Cellular System Gravel Grid Driveway Gravel Stabilizer
Applications:
1.  Used for the stability of railway roadbed.
2.  To stabilize the desert highway roadbed.
3.  Used in the governace of shallow water channel.
4.  Used for the foundation feinforcement of retaining wall.wharf,and levee.
5.  For the management of desert,beaches and river banks.




Geocells Ground Reinforcement Cellular System Gravel Grid Driveway Gravel Stabilizer
