The description of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
Hdpe Geocell a lightweight and flexible three-dimensitional,expandable panels made of high-density polythylene(HDPE) sheets which are ultrasonically bonded together to make to be an extremely strong configuration.It mainly applied in:Channel protection, Slope&Green wall protection, Soil stabilization Load support for access way,air port, parking lot,etc.
Smooth Surface of Hdpe Geocell
Textured Surface Hdpe Geocell
The advantage of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
The Usage of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
The Specification of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
The Production Process of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
The Production Line of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
The Packaging of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
About US
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
The contact information of us
Hdpe Geocell a lightweight and flexible three-dimensitional,expandable panels made of high-density polythylene(HDPE) sheets which are ultrasonically bonded together to make to be an extremely strong configuration.It mainly applied in:Channel protection, Slope&Green wall protection, Soil stabilization Load support for access way,air port, parking lot,etc.
Smooth Surface of Hdpe Geocell
Textured Surface Hdpe Geocell
The advantage of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
•Light weight, wear-resistant, chemical stability, anti-aging,anti-ultraviolet, anti-acid/ alkali corrosion. | |
•Wide temperature range adaptable, high tensile strength. | |
•Good rigidity and toughness, good load capacity and anti-erosion ability. | |
•Size is variable, change the height and welding distance can meet the needs of different projects. | |
•Retractile, easy to transport. |
The Usage of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
•To reinforce the roadbed of highway/railway. | |||
• To bear the pressure of dam, retaining wall. | |||
•To protect slope from landslide and mudslide. | |||
•To be used as independent wall, wharf and breakwater, etc. | |||
•To protect channel from water flowing. |
The Specification of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
Color | - | - | Black/Green/Sand |
Property | |||
Material | - | Virgin HDPE | |
ESCR | ASTM D1603 | hr | 400 |
Density | ASTM D1505 | g/cm3 | 0.945-0.960 |
Thickness (smooth) | ASTM D5199 | mm | 1.20 (-5% +10%) |
Thickness (Textured) | ASTM D5199 | mm | 1.50 (-5% +10%) |
Carbon Black | ASTM D1603 | % | ≥ 1.5 |
Seam Peel Strength | USACE GL-86-19 | N | ≥ 15KN/m |
Tensile Strength at Break | ASTM D638 | kN/m2 | ≥ 32000 (TD) / ≥ 30000 kN (MD) |
Elongation at Break | ASTM D6693 | ≥ 900 (TD) / ≥ 480 (MD) | |
Oxidative Induction Time | ASTM D3895 | min | ≥150 |
Long-term Seam Peel Strength | Long term seam peel strength test shall be performed on all resin or pre-manufactured sheet or strips. A 100mm wide seam sample shall support a 72.5kg load for a period of 168 hours minimum in a temperature controlled environment undergoing a temperature change on a 1-hour cycle from 23ºC to 54ºC | ||
Standard Dimensions | 356mm | 445mm | 712mm |
Nominal Expanded Cell Size | 252mmx252mm | 315mmx315mm | 503mmx503mm |
Nominal Section Size | 2.52mx7.3m | 2.52mx9.12m | 2.52mx14.6m |
Nominal Section Area | 18.37m2 | 22.96m2 | 36.74m2 |
The Production Process of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
The Production Line of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell

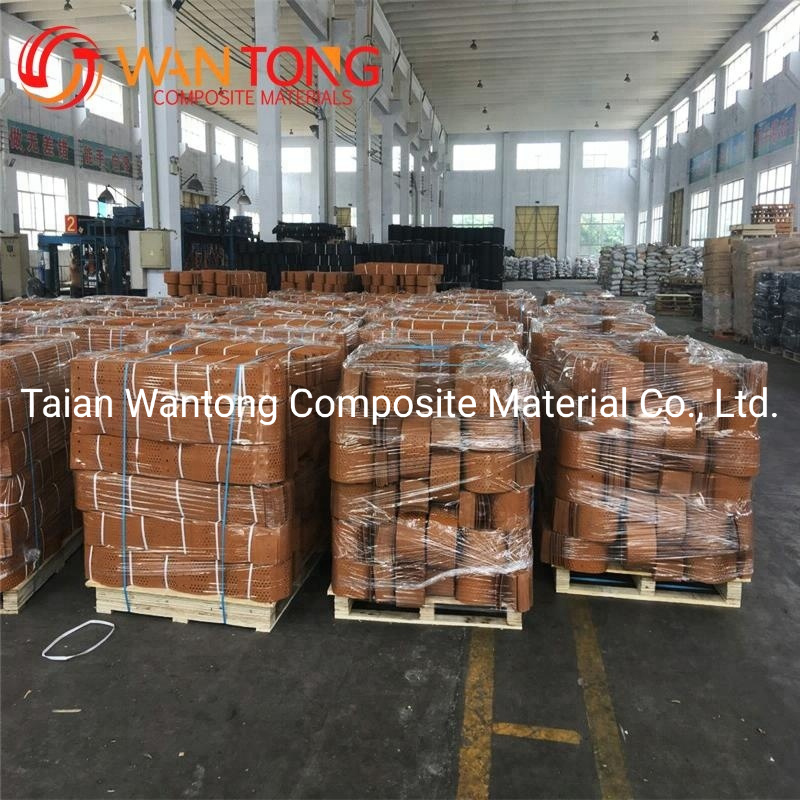

The Packaging of 100-450 Plastic Gravel Grid, Gravel Driveway Black HDPE Grid Geocell
About US
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
The main product of our company
| Geogrid | PP plastic biaxial geogrid |
| PP plastic uniaxial geogrid | |
| HDPE plastica uniaxial geogrid | |
| Fiberglass geogrid | |
| Polyester geogrid | |
| Steel composite plastic geogrid | |
| Geotextile | Non woven PP geotextile |
| Non woven PET geotextile | |
| Woven geotextile | |
| Fiberglass product | Fiberglass chopped strand mat |
| Fiberglass woven roving | |
| Geomembrane | HDPE geomembrane |
| LDPE geomembrane | |
| Non woven fabric | PP spunbond non woven fabric |
| PET spunbond non woven fabric | |
| Watering bags | 20 gallon PVC watering bags |
| 15 gallon PVC watering bags | |
| 27 gallon PVC watering bags | |
| Geocell | |
| Geonet | |
| 3D Geomat | |
| Grass grid | |
| Geosynthetic clay liners(GCL) | |
| Drainage board | |
| weed control mat (ground cover) |
The contact information of us
